(6 CaO x 6 SiO2 x H2O)CIRCOLIT®-Powder is a synthetic CalciumSilicateHydrate in the crystal form xonotlite
and as a free-flowing white powder easily dispersible in organic and mineral solvents.
CIRCOLIT®-Powder is multifunctional. It is rod-shaped and thus strengthens microscopically.
The material is highly porous when in slightly dispersed condition and thus transfers this condition to the finished systems.
CIRCOLIT®-Powder is temperature-stable up to approx.750 °C. At high temperatures an endothermic isostructural phase transformation to wallastonite takes place, without changing the crystal structure.
| Chemical composition | 6 CaO x 6 SiO2 x H2O Calcium Silicate Hydrate |
Specific surface (BET) | 35 m2/g | ||
| SiO2 | 45,18 % | CaO | 46,08 % | Hg fillable porosity | 1,965 cm3/g |
| Al2O3 | 0,33 % | MgO | 0,52 % | Density | 2,47 |
| Fe2O3 | 0,13 % | Na2O | < 0,02 % | pH value DIN ISO 787/9 | < 11 |
| Mn | < 0,001 % | Cr | < 0,001 % | Water soluble component ISO 787/3M.-% |
0,18 |
| Mineral composition | Xonotlit | Glow loss | 10,0 % | ||
| Crystal form | stäbchenförmig | ||||
| Aspect ratio l/d | ca. 20 | ||||
| Whiteness (ISO 2410 R 457) with UV | 92,5 | ||||
| Brightness (CieL*a*b*) | L* = 96 a* = 0,17 b* = 0,92 |
||||

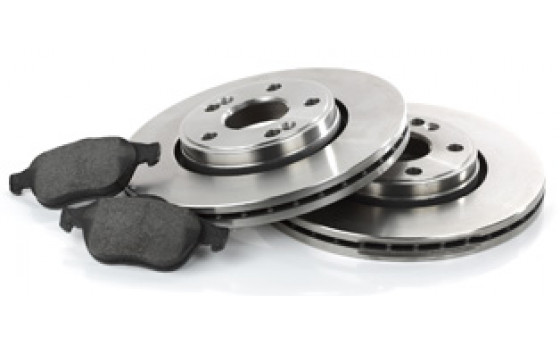

| Product characterisation for the friction coating industry |  |
|
| Bulk volume | 600 ml/100 g | |
| Bulk density | 180 g/l | |
| aspect ratio l/d |
ca. 20 | |
| Typical analysis; Measurement with laser granulometry (Cilas 1064) |  |
|
| CIRCOLIT®-Pulver | ||
| d50 [µm] | 9,0 | |
| d97 [µm] | 38,0 | |
|
|
