CIRCOSIL®

Water Technology

Water Technology

At Cirkel, sustainability and responsibility for our environment are taken literally.

Sustainability and environmental responsibility are integral components of CIRKEL's corporate philosophy. This is evident in the conscious selection and conservation of natural raw materials – lime, sand, and water – as well as in close collaboration with experienced partners in the environmental and water technology sectors. Modern process management, the original – i.e., primary – production for the application area, and continuous quality control ensure the consistently high properties of CIRCOSIL® for our customers. The calcium silicate hydrate (CSH) CIRCOSIL® is already successfully used as a multifunctional mineral in numerous water technology applications.

CIRCOSIL® is used:
as a crystallization seed in phosphate removal
in wastewater treatment plants for recovering dissolved phosphates
for reducing magnesium ammonium phosphate (MAP) deposits
in industrial wastewater treatment
for reducing eutrophication in lakes and ponds
in the P-RoC process
in the SIMPhos process
in phosphate absorption plants
as an aid for heavy metal precipitation
in groundwater remediation
in surface and stormwater treatment
CIRCOSIL® is:
a synthetically produced calcium silicate hydrate with the composition of the natural mineral tobermorite
originally produced as granules and available in defined particle size distributions for various applications
almost insoluble in water
slightly alkaline
highly porous with a functional, large specific surface area
CIRCOSIL® achieves:
the provision of a locally alkaline pH value
a sustainable alkaline buffering effect due to its mineral solid nature
the functional precipitation of dissolved phosphates and binding to calcium silicate hydrate structures
die funktionale Fällung wasserlöslicher Schwermetall-Kationen und Bindung an CalciumSilikatHydrat-Strukturen
hervorragende hydrodynamische Fließeigenschaften
Sie haben fragen?

Unsere Ansprechpartner
helfen Ihnen weiter!

Research and Development - Lab Management
maria.becker@cirkel.de
+49 2572 9231250
Product Manager Water Technology
katja.kolodzi@cirkel.de
+49 2572 9231235

Partikelgröße

Topcut [mm]
D50 [mm]
CIRCOSIL® 0,1
CIRCOSIL® 0,5
CIRCOSIL® 1,5
CIRCOSIL® Grobkorn
0,3
0,7
1,8
4,2
2,5
0,06
0,3
1,0

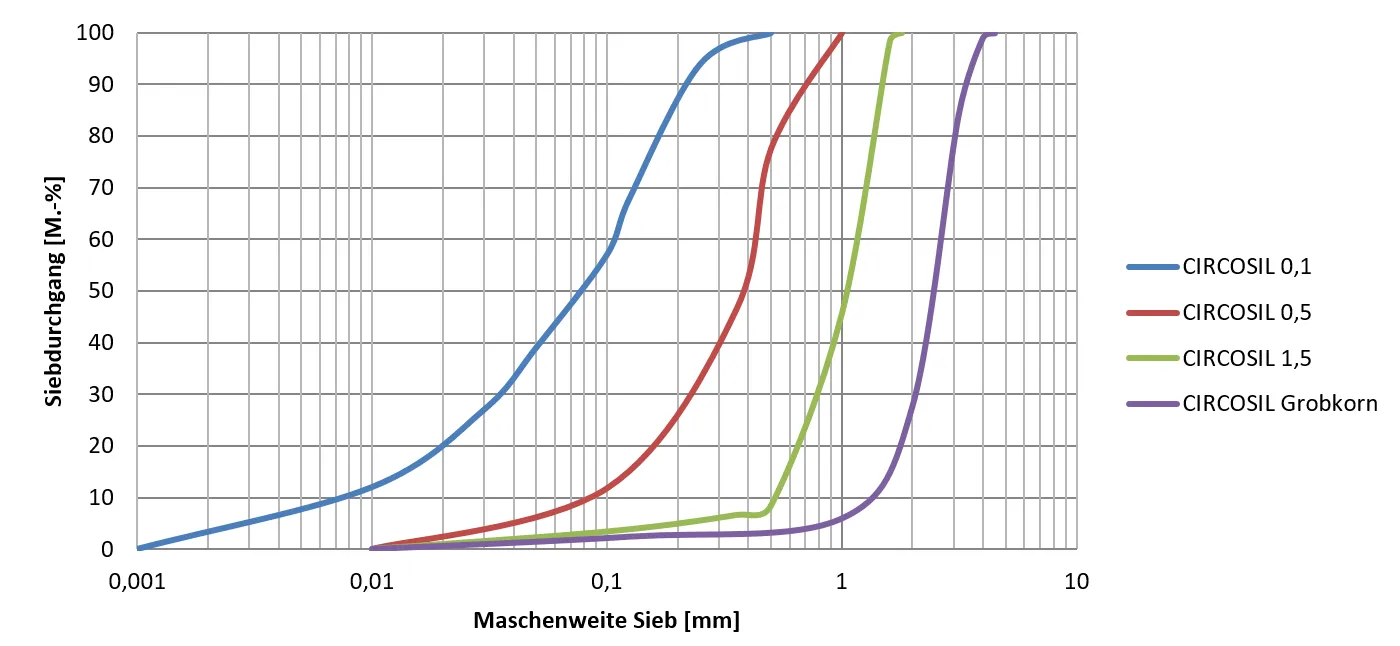

Kumulierte Siebdurchgangswerte

Lieferformen

CIRCOSIL® 0,1
CIRCOSIL® 1,5
CIRCOSIL® 0,5
CIRCOSIL®  Grobkorn
Lose im Silo-LKW
Lose im Silo-LKW
Lose im Silo-LKW
1,5 m3 Q-Bag
auf Industrie-Einwegpalette
- Gewicht ca. 900 kg/Q-Bag
- Abmessung inkl. Palette
L x B x H: 100 cm x 120 cm x ca. 200 cm
1 m3 Big Bag
auf Industrie-Einwegpalette
- Gewicht je nach Körnung ca. 550 - 700 kg/Big Bag
- Abmessung inkl. Palette L x B x H: 100 cm x 120 cm x ca. 150 cm
1 m3 Big Bag
auf Industrie-Einwegpalette
- Gewicht je nach Körnung ca. 400 kg/Big Bag
- Abmessung inkl. Palette L x B x H: 100 cm x 120 cm x ca. 150 cm
Papiersäcke
auf EURO-Mehrwegpalette, foliert
- Säcke à 25 kg, 975 kg/Palette
- Abmessung inkl. Palette
L x B x H: 80 cm x 120 cm x ca. 200 cm
Papiersäcke
auf EURO-Mehrwegpalette, foliert
- Säcke à 25 kg, 825 kg/Palette
- Abmessung inkl. Palette
L x B x H: 80 cm x 120 cm x ca. 200 cm
Papiersäcke
auf EURO-Mehrwegpalette, foliert
- Säcke à 20 kg, 600 kg/Palette
- Abmessung inkl. Palette
L x B x H: 80 cm x 120 cm x ca. 180 cm
Sonderverpackung nach Absprache
